Rack Mounting Panels

Rack Mounting Panels

The RMP-1000, 2000, 3000 are a series of cost-effective rack mountable panels that will allow most transmitters, receivers, transceivers, or patch panels to be mounted to a standard EIA 19 rack frame. The panels are available in 1U, 2U and 3U configurations and may be used with either external or integral mounted companion power supplies.

The simple nature of the rack mounting panels allows maximum space in the rear of a rack enclosure for other equipment while still providing a rugged mounting for the fiber optic equipment. When fully populated, an RMP has the same front panel appearance as a common card-cage but at a significantly lower overall cost.


Model No.

Rack Size

Total Slots

Slots with Power Supply

Physical size (mm)

Typical Supply*

Cost**

RMP-1000

1U

3

2

1.75" (44.5) x 19" (483)

PS-1210

$55
RMP-2000

2U

6

4

3.50" (88.9) x 19" (483)

PS-1210 or PS-1260

$75
RMP-3000

3U

14

12

5.25" (133.4) x 19" (483)

PS-1260

$90

**All prices $US, domestic, Rack Only (power supply not included) and subject to change
*Also note you can use still use the wall plug power supply to power units individually.

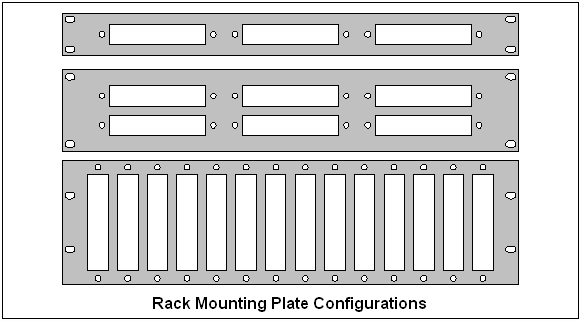

1U, 2U, & 3U Rack Panel Configurations

Overall Finish, Black Powder Coated Anodized aluminum


Blank filler plates are available. Order RMPB-1001
Rack panel filler plate


For fiber adapter plates see RMPA-1004.
 Fiber Optic Adapter Rack Panel


Note that all specifications are subject to change without prior notice.
