MIDI-1001 Twisted Pair MIDI Extender

Extend your MIDI signals 16  to 1000 feet using CAT5 twisted pair cable.

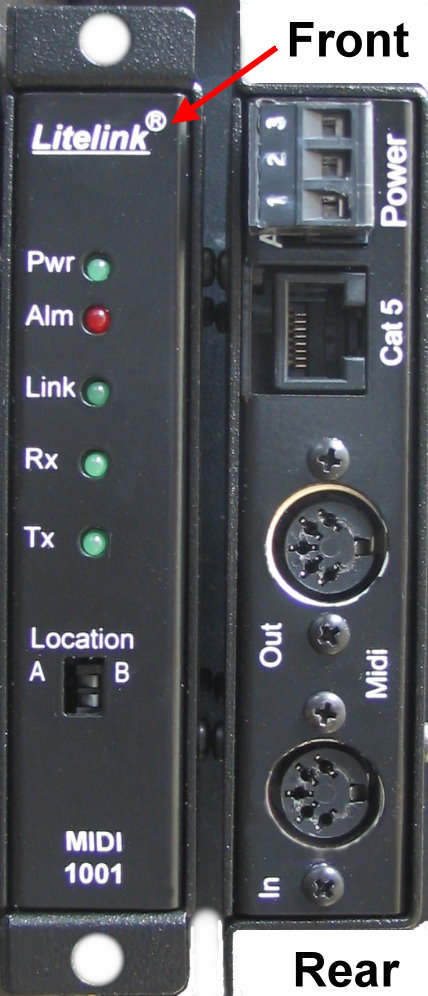

MIDI-1001     CAT5 MIDI Transceiver   Click for larger image of MIDI Cat5 (twisted pair) extender
Extend MIDI signals over CAT5 cable

Cat 5 MIDI application


The MidiExtender MIDI-1001 system consists of two MIDI-1001 transceivers. These units utilize transmission techniques that allow standard MIDI (Musical Instrument Digital Interface) data signals to be transmitted and received over a standard CAT5 data transmission cable over distances of 1000 feet.  The unit is designed to operate in simplex, full duplex or drop-and-repeat modes.

 The MIDI-1001 will operate continuously at all data rates from DC to 1 Mb/sec.

If your link distance is greater then 1000 feet or you need noise immunity, see our Fiber Optic MIDI link the MIDI-2001


Specifications Important Features
Bit Error Rate  1 x 10E-9 (worse case)   Up to 1,000' feet
Bandwidth  DC to 1.0 Mb/s
 (includes 31.2kKbaud)
  No Adjustments
Rise & Fall time  Less then 100 nanoseconds   Visual  Status Indicators
MIDI output drive  25mA (10x MIDI 1.0)   Single model for stand
     alone or rack mount
Input Isolation  10 KV/us Optical isolation   Din Rail mount option
Electrical Connectors  Standard MIDI 5-pin-DIN
 RJ-45
  $300 Total Cost per system**
Operating Temperature  -35 to+75 C   30 day money back
Power Requirements  11-24 VAC/DC @160 mA   3 year warranty
Physical Size  5.0 x 3.0 x 1.0"
127mm x 76mm x 25.4mm


*Note all specifications are subject to change without noticeMade in USA image

Equipment can also be mounted in a 1U rack.

**The price includes two MIDI-1001  transceivers and one PS-1205 US power supply.  MIDI cables and CAT5 Cable are not included in this price as each installation can have unique cable lengths.  Components are ordered as individual items.  We also have EU (European Union), UK (United Kingdom), AU (Australian)  power supplies at an extra cost.

Problems with your hook up?  See Trouble Shooting chart.

Video Instruction Manual
